Journey Instruments - PJ410N - Solid Sitka Top

The PJ410N Puddle Jumper features a solid sitka top with layered African mahogany sides/back and collapses to carry-on size of 18.5*12.5*7 inches! It assembles in 20 seconds with our patented detachable neck system that’s guaranteed for life. A shorter 23 inch scale, a versatile 1 11/16 nut width quality components make this the most portable and fun guitar you’ll ever play! Quality carry-on backpack included – and it even fits under most airline seats!

• Compact, travel-ready design with full, balanced tone

• Premium spruce top for clarity and projection

• Comfortable neck profile for smooth playability

• Rich, expressive sound that performs anywhere

Explore music without limits — the Journey Instruments PJ410N delivers tone, comfort, and portability in one beautifully crafted guitar.

Designed for Travel

• The Overhead travel guitar uses a patented collapsible neck system which allows for assembly/disassembly in a matter of seconds.

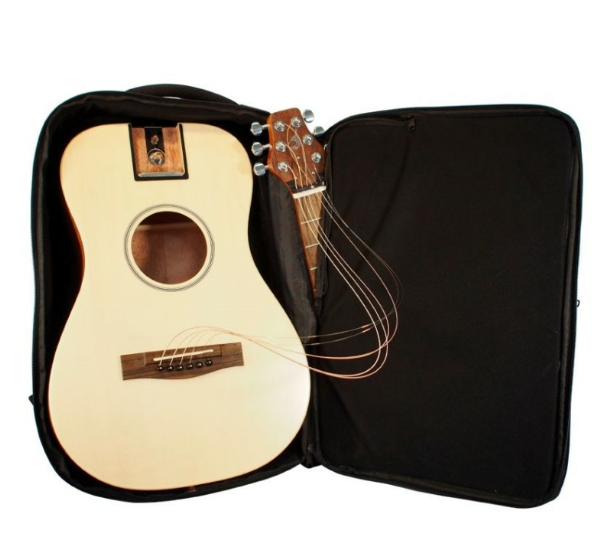

• After packing in its travel backpack the Puddle Jumper travel guitar can be carried-on to most major airlines, easily fitting in either the overhead bin or under the seat in front of you.
• 14-inch computer compartment and side bottle pouch

Great Tone in a Tiny Package

• A great small-bodied guitar with surprising volume and tone in a tiny package
• Traditional sound-hole design with forward-shifted, tapered  X-bracing maximizes the resonance and volume of the soundboard.
• The dual-action steel truss-rod enables fine tuning of relief to suit any playing style.
• Satin-finish low-c profile neck make this 23 inch scale super comfortable to play.

Guitar Specifications

Proprietary Body Design:
Stylized 00 body shape
Center sound hole with traditional rosette

Soundboard:
Hand-selected Premium Solid Sitka Spruce

Soundhole radius: 1 13/16″ (46mm)

Back and Sides:
Premium layered African Mahogany

Bracing:
Forward-shifted tapered  X-bracing
Compound block for reduced weight and strengthened latch support

Binding and Markings:
MOP logo and position markings
Mahogany back binding, tapered soundboard edge

Scale:
23 in (584.2 mm)

Finish:
Satin on soundboard, back, and sides

Bridge:
Ovangkol, high break-angle

Tuners:
14:1 mini chrome tuners

Electronics:
No pickup

Removable Neck Assembly:
Stainless steel load-bearing components
Push-button release latch under neck
Large adjustment knob on back

Neck:
Carbon fiber reinforced traditional C shape with two-way adjustable truss rod
Solid African Mahogany
Deep-slotted bone nut
Neck width at nut: 1 11/16 in (42.7 mm)
Neck width at 12th fret: 2.2 in (56 mm)
12 Frets to body
16 Frets total

Fret Board:
16 inch Radius, Ovangkol
Medium brass fret wire

String Spacing:

34.5 mm at nut

57.8 mm at saddle

Compensated bone saddle

Strings:
D’Addario EXP17 Coated Phosphor Bronze Acoustic Guitar Strings, Medium, 13-56

Guitar Dimensions and Weights:
Weight: 3.7 lbs (1.68 kg)
Weight With Case: 6.07 lbs (2.76kg)
Depth: 4.05 in (10.3 cm)
Body Length: 17.72 in (45cm)
Total Length: 33.58 in (85.3cm)
Lower Bout Width: 12.2 in (31 cm)

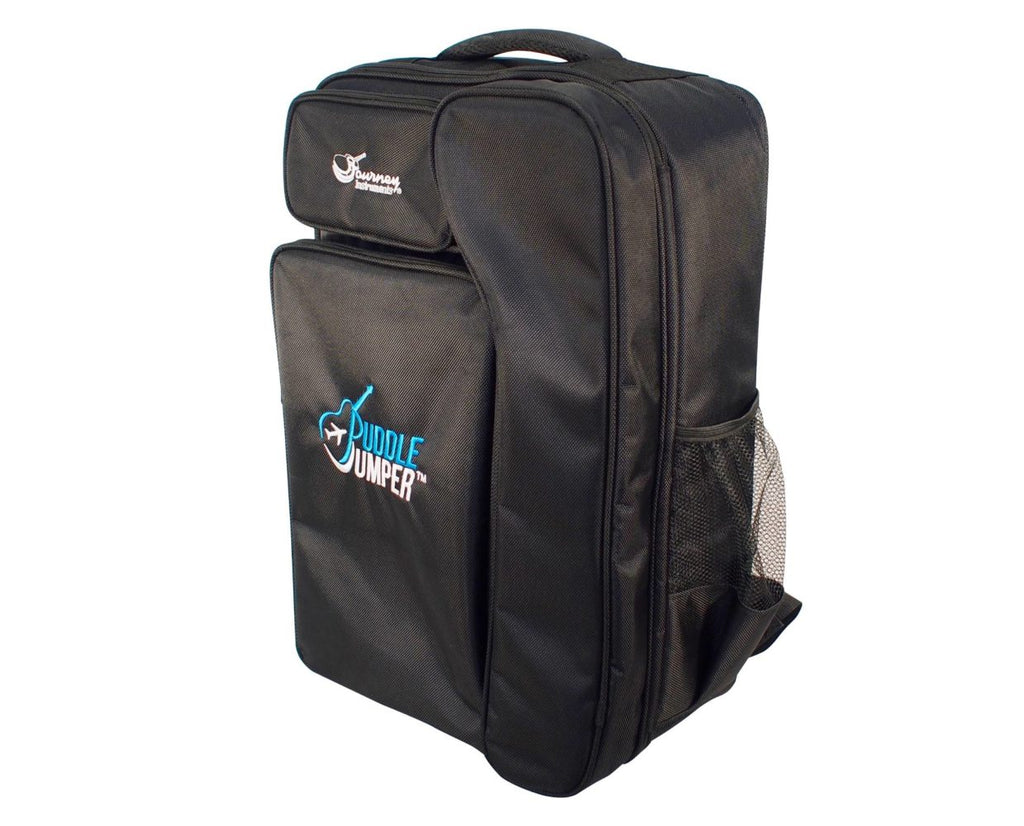

Travel Backpack Specifications

Tech Travel Ready:
Fits collapsible guitar and a 14-inch computer compartment
Accessory pocket and side water bottle pocket

All- Premium Material Construction:
Extra-durable Ballistic Nylon external case with premium nylon and velour lining
Extra-padded Body compartment with premium velour
Internally-accessible padded neck compartment with premium velour and string slot
Padded string panel with strings positioning tab
Padded top handle and backpack straps

Maximum Case Dimensions: L*W*H: 19.5*12.5*7 in ( 50*32* 17.8 cm)
